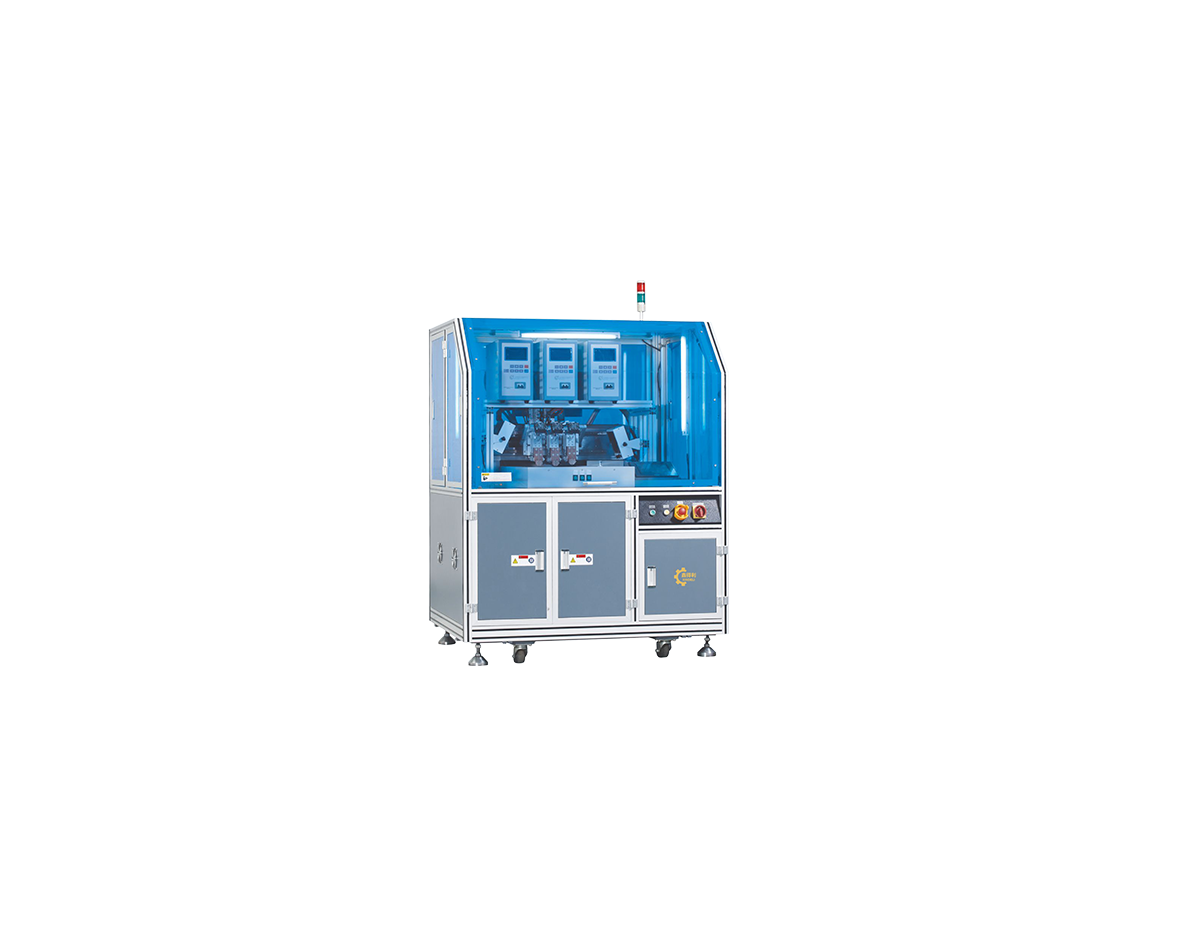

Antenna Bonding Machine

The Semi-auto bonding machine use to weld the antenna and modules of contactless cards. With the double pulse current inverter welding. The welding heads can be fine adjusted at X, Y, Z direction, with the purpose of precise welding,the machine is steady, easy operation and simply maintenance The welding inverter is steady and can be adjusted, only need one operator. In the machine structure, the machine is easy to operate and maintain, which enhances the service life of machine and the productivity. The appearance and style of the machine is concise and easy, rationalization and hommization, and the user-friendly operator interface protect the safety of operators. We can also design the different style appearance according to different requirements.

Features

● After chip placing and wire embedding, the bonding machine can quick finish the  welding of wire and chip.

●Use the double pulse current inverter welding machine, convenient and  directly to monitor the welding, precision and high quality.

●The welding inverter can be adjusted according to the production requirement.

● Servo system controls the position of welding heads, which ensure the welding  quality and protect the welding heads.

●It can weld the different layout, each layout setting can be called directly by PLC control system.

●The welding heads can be fine adjusted at X,Y, Z direction.

●Welding with the low running noise

●The machine can be installed 8 heads at most, and 1 to 8 welding heads can welding at the same time

●Materials are loaded using the dowel pin, easy to adjust.

●Use  the servo system to position to ensure the position accurate.

●Use  the Delta PLC and the touch screen, stable and visualized.
