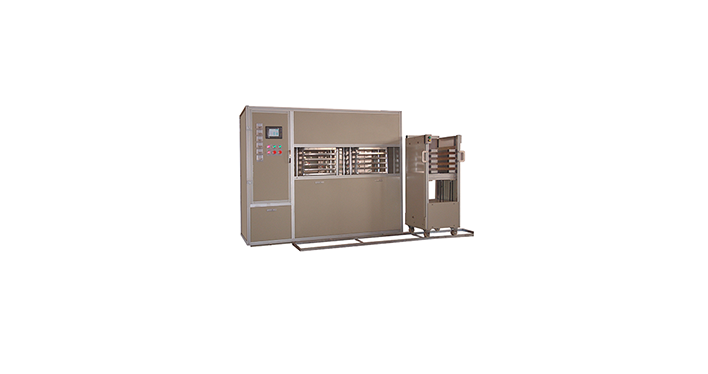

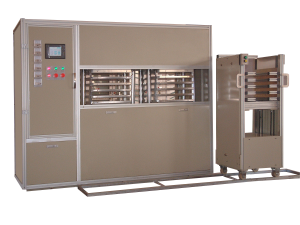

Sheet Laminator
Equipment features
PLC industrial automation control;Powerful software, automatic alarm, save fault records, etc.;Temperature using PID self-setting function, can dynamically track the control temperature, maintain the uniformity of temperature;HROA international standard cylinder, increase 220MM;Hydraulic system with variable fluid technology;
Cold and heat machine aluminum alloy material, cold machine is not easy to rust, heat machine temperature fast;Humanized operation, high and low pressure automatic oil return device, automatic pressure refill, automatic pressure relief, manual pressure relief device;Thermal and mechanical mold closing photoelectric switch control to realize micro pressure mold closing, laminating and multistage pressure control effectively control the chip yield;Seven layers of high efficiency, higher than similar products efficiency of 20% and improve product quality;
Machine type KCD – FA5200 PLC control way
Refrigeration electrical heating way water cycle refrigeration and heating
Pressure level Heat engine pressure 12, cooling pressure 5
Pressure range and accuracy (0 to 16) Mpa + / – 0.1 Mpa (0-200 ℃ temperature range
The temperature accuracy of plus or minus 2 ℃ heating material of aluminum alloy
The plate thickness is 45mm and the opening thickness is 50mm
Number of hydraulic cylinders single cylinder laminate area 420mm×520mm
Effective laminate area 400mm x 500mm laminate number 7 layers
Power source 380 v, 50 hz power 22 kw
The machine weighs 2.6T
描述
The machine is a equipment of high precision and high output which is made up of PLC control system and mechanical hydraulic system, with hot and cold system。It is available for the laminating of all kinds of card making sheet material (especially for the contractless IC car, ID card including Inlay) .
