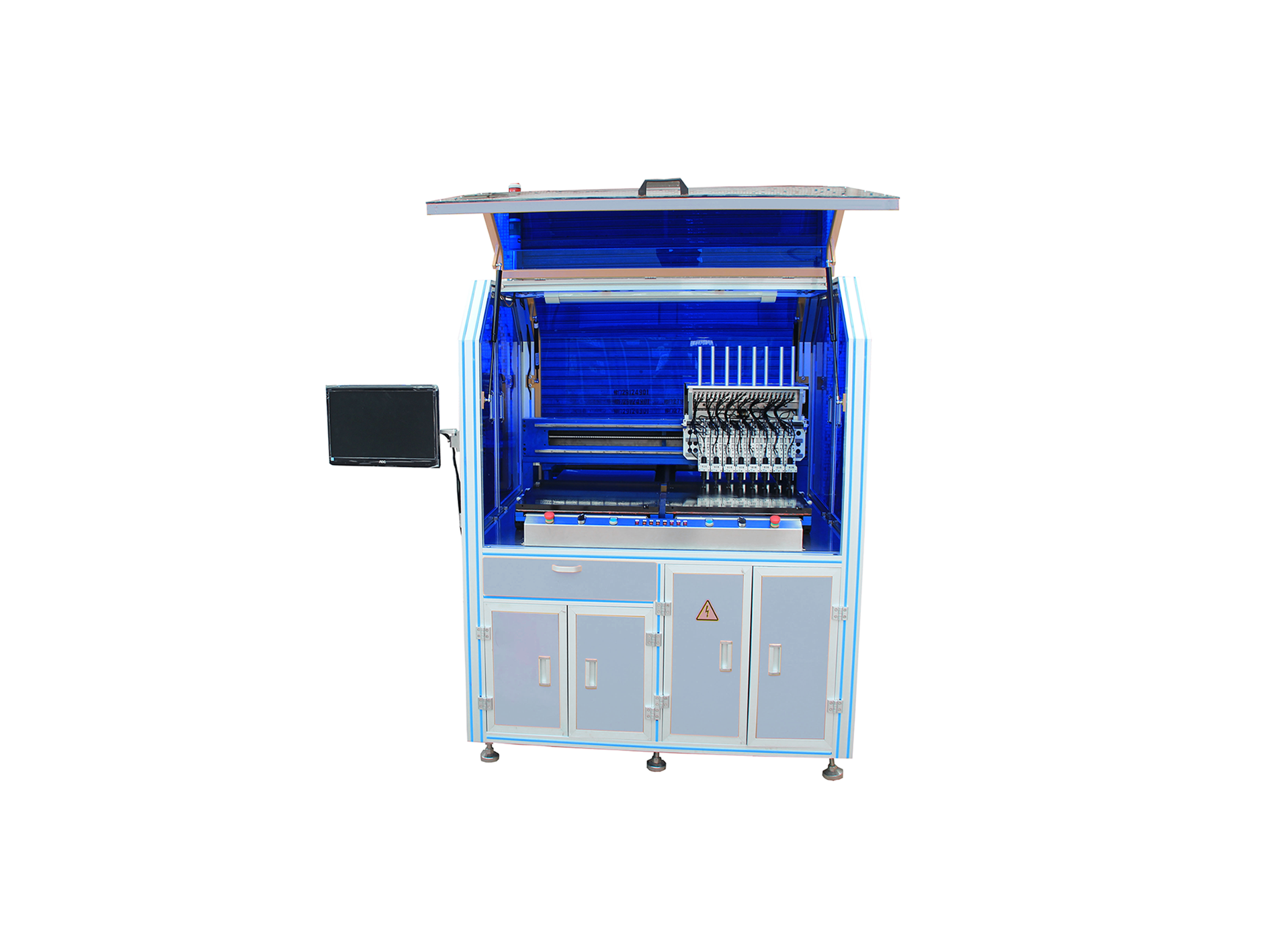

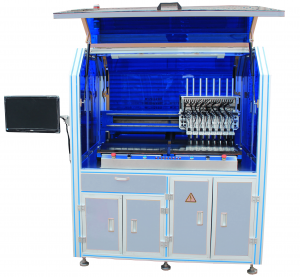

wireembedding machine

Features:

Adopt PC software + motion control card, through motion control card drive imported servo motor. This machine use three axis positioning system, domestic ultrasonic antenna implanting technical for inlay antenna implanting.

Friendly LCD interface and simple operation. Equipment moving parts adopt closed mode of motion for safety performance, so as to be better protect the safety of operator.

Main function

1. Adopt domestic ultrasonicantenna implantingtechnology, high stability. Easy for debugging and maintain.
2. Up & down layers, 4 working tables alternating movement. Machine keep on running whenever feeding material, improves the production efficiency.3*8,4*8 & 5*5 sheet optional, both machine A & B can also separate working.
3. According to the customer’s demand, can make different antenna shape,flexible strong compatibility.
4. Adopt pin positioningfor materialfeeding, vacuum adsorption, convenient and easy to adjust, change of material.
5. Imported servo positioning system, to ensure the precision of the embedded wire, high repeat precision.
6. Concise, clear interface and simple operation.
7. All the moving parts. adopted the enclosed movement pattern,more assured safety operation.

Equipment parameters:
